- Purpose
- To show that a wire coil wrapped around one pole of a horseshoe magnet will jump off of the magnet when current is applied.
- Location
- Room 146; shelf M6, HP power supply on C3

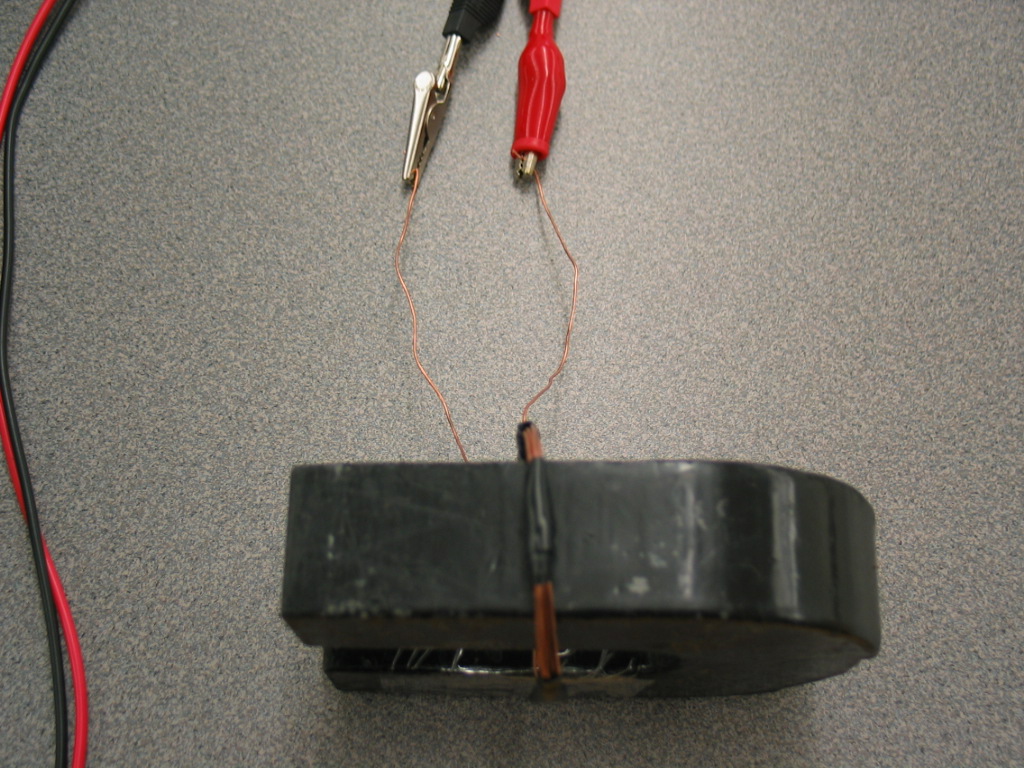

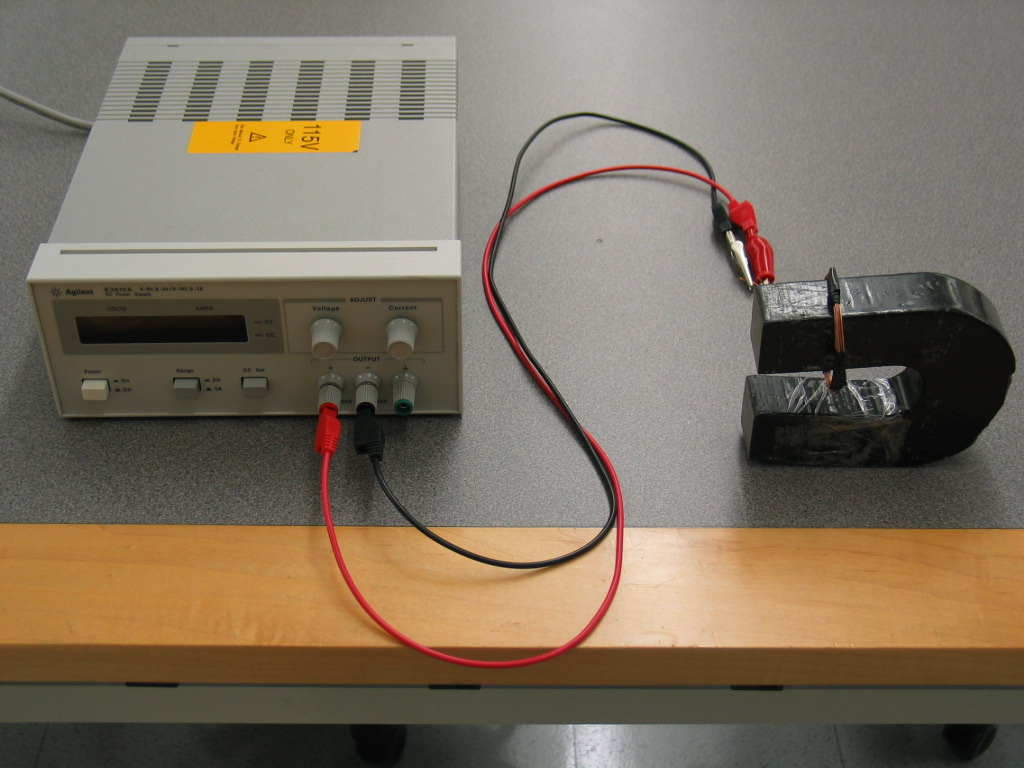

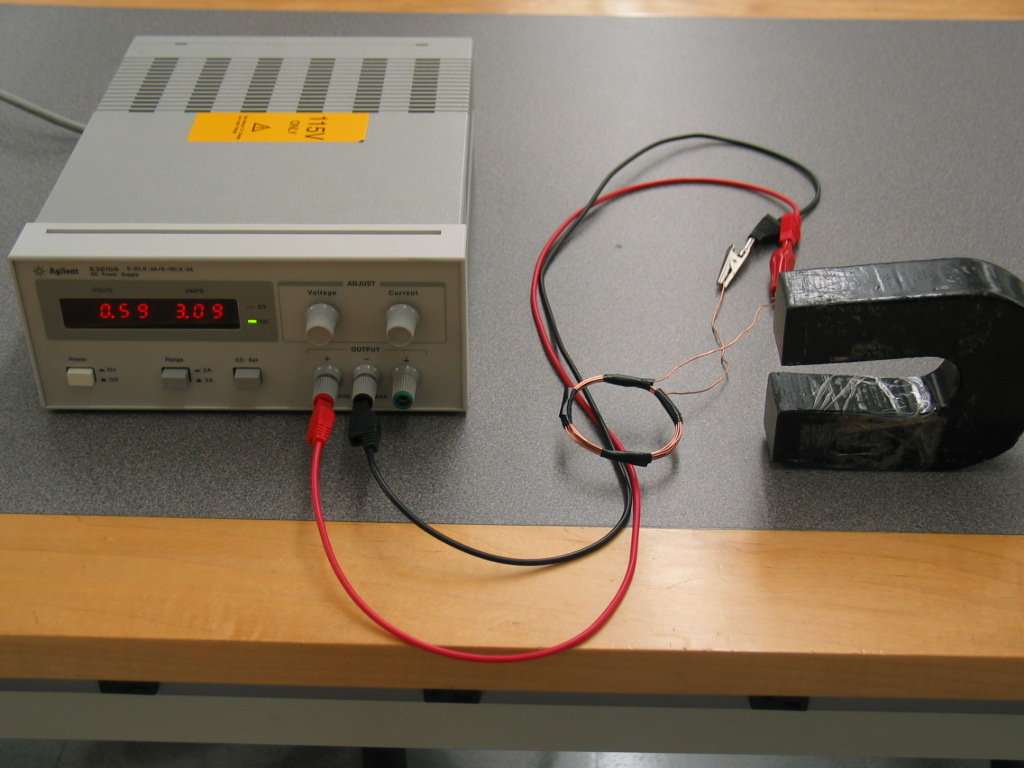

- Description
