Digital Communications
Course Nos. 0909-402-03 (Senior Elective) & 0909-504-01
(Grad)
Fall 2002
Lab Project 2
Monte Carlo Simulation of a
Bandpass Digital Communications System
Objectives
- To simulate M-ary bandpass PSK and QAM digital
communications systems with in the presence of AWGN channel
- To compute BERs and compare with theoretical
predictions
Software
- MATLAB and Communications Blockset
- Simulink DSP and Communications Blocksets
Requirements
- Develop a simulation of the the bandpass digital communications system
shown in the Figure.
- Obtain performance curves of BER vs. SNR for M-ary PSK and M-ary QAM
systems for M = 2, 4, 16
- Compare with theoretically predicted values - note down your observations.
- What conclusions can be drawn from this simulation?

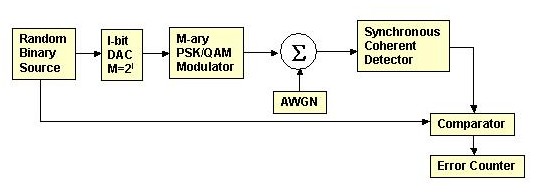

Figure 1: Bandpass digital communications system.
Click here
for required lab project report format.
